Stainless Steel Security Screen It also can be named anti-theft screen, bulletproof screen, crim-safe security screen. It's woven by high quality stainless steel wire and with coated surface, so it has the high performance of high strength,simple and powerful, resisting shear and anti-shock to reach the features of bulletproof, anti-theft, ventilate, light transmitting, artistic and safe.
Our Testing Standards
-
Diagonal Deviation, strict controls of +/- 5mm
-
Fine Grinding - The Surface Treatment Of 0.03mm
-
Double Plain Weave High Hardness To Bulletproof
-
Precipitation Of Metal Cons ,Non Magnetic
-
Steel Wire After Micron Grade Precision Machining
Approval Astrilian:
1. Knife Shear Test,
2. Fire Test,
3. Jammy Test,
4. The Probe Test
5. The 1000hours Salt Spry Test
Material
1). AISI 304 stainless steel wire (normal material)
2). Marine grade 316 stainless steel wire ( advantage products)
3). High tensile marine grade 316 stainless steel wire ( core products)
4). 201 stainless steel wire, galvanized steel wire and low carbon steel wire( lower cost )
Mesh Size x Wire Dia:
10mesh x 0.8mm, 10mesh x 0.9mm
11mesh x 0.8mm, 11mesh x 0.9mm, 12mesh x 0.7mm
14mesh x 0.5mm, 14mesh x 0.55mm, 14mesh x 0.6mm
Avaliable Screen Size
Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm
Length: 2000mm, 2400mm, 3000mm
Coating Color
Black/Gray/White epoxy coated etc
Specification:

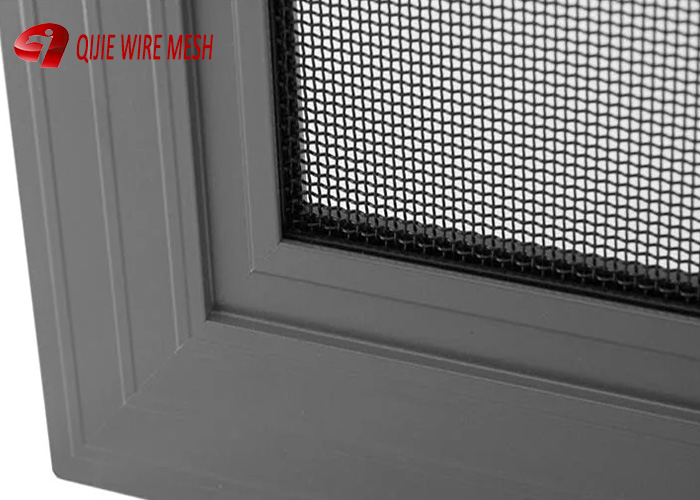

Stainless Steel Security Window Screen:
product specifications: | screen netting metiterial | stainless steel |
| material | ss304, ss304L,ss316,ss316L |
| mesh | 10-18mesh |
| wire diameter | 0.3-1mm |
| colour | black gray white yelloe etc |
| width | 0.9-3m |
| length | 30m,or as your requairment |
| weight/m² | 100g-300g |
| weave style | plain weave |
| application | protection net |
| Type | weave wire mesh |
| certification | ISO9001:2008 |
Material type: Stainless steel 304,304l,316,316l,
Weave type: plain weave style
Common specification: 11 mesh * 0.8mm wire, 11 mesh* 0.9mm wire,10 mesh * 0.9mm wire, 12mesh* 0.7mm wire,14 mesh* 0.6mm wire, 14 mesh * 0.7mm wire
Standard size: 750mm×2000mm 900mm×2000mm 1200mm×2000mm 750mm×2400mm 900mm×2400mm 1200mm×2400mm,1300mmx2600mm, 1500mmx2400mm.
Color: black,white, gray, dark gray,
Normal Specifications
The below specifications are the normal specifications asked by customers.
If you need other specifications, please do not hesitate to contact us for customized sizes.
| Material | Mesh Size | Hole Size | Sheet Size |
| General tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm | Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
| 9mesh×1.0mm | 1.8mm |
| 10mesh×0.8mm | 1.8mm |
| 10mesh×0.9mm | 1.6mm |
| 10mesh×1.0mm | 1.5mm |
| 11mesh×0.8mm | 1.5mm |
| 11mesh×0.9mm | 1.4mm |
| 12mesh×0.7mm | 1.4mm |
| 12mesh×0.8mm | 1.3mm |
| 12mesh×0.9mm | 1.2mm |
| 14mesh×0.5mm | 1.3mm |
| 14mesh×0.55mm | 1.2mm |
| 14mesh×0.6mm | 1.2mm |
| 18mesh×0.32mm | 1.0mm |
| |
| High tensile 316 Marine grade stainless steel wire | 8mesh×1.2mm | 2.0mm | Width×Length 750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
| 8mesh×1.3mm | 1.9mm |
| 9mesh×0.9mm | 1.9mm |
| 9mesh×1.0mm | 1.8mm |
| 10mesh×0.9mm | 1.6mm |
| 10mesh×1.0mm | 1.5mm |
| 11mesh×0.8mm | 1.5mm |
| 11mesh×0.9mm | 1.4mm |
| 1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box |
Feature:
1. Equal wire tensile strength, Equal wire diameter
2. Equal mesh size
3. Flat and straight surface
4. No mesh fault whatever angle you have
Chemical Composition:
| Chemical composition of stainless steel wire: |
| Grade | Chemical Composition(%) |
| | C | Si | Mn | P | S | Ni | Cr | Mo |
| 304 | =0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =0.030 | =1.00 | =2.00 | =0.045 | =0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 | 16.00~18.00 | - |
| 430A | =0.06 | =0.50 | =0.50 | =0.030 | =0.50 | =0.25 | 14.00~17.00 | - |
Packing
Security screen are separated by plastic film and waterproof paper, and normally 50 pieces pack into one poly-wood case.
If you have special requirement for the packing, please do not hesitate to let us know.
Characteristics: Air permeability, light penetration, bright color, good stability, fire proof, high temperature
Resistant, acid & alkali resistance and corrosion resistant.
application:
used in all types of windows and doors
Used in producing security screen that guards your hours anti-theft,anti-mosquito,
anti-pest.It is suitable for advanced door and window
Quality inspection of Stainless Steel Insect Screen:
Application of Stainless Steel Insect Screen:
